Touch Screen Digital Self Service Kiosk

In stock
This PCAP touchscreen digital self-service kiosk provides a self-ordering touch screen solution for quick service restaurants reducing queues and wait times. With an integrated receipt printer, QR code scanner and space to integrate a credit card reader. Designed for constant use with a special anti-scratch 6H hardness coating. Customisable upon request with other sizes and colours available. Read More
  £2,700.00
  £2,250.00

For larger quantity discounts to get an unbeatable price

truck 2-3 Working Days Delivery
thumb-up 3 Year Hardware Guarantee
Key Features:
  • 10 point PCAP touch screen
  • 27 inch 1080p screen
  • Integrated Epson printer for quickly printed receipts
  • Replace roll without opening the main access door
  • Integrated QR code scanner for special offers
  • Easy to wipe clean surface
  • Anti-theft mounting with lockable door
  • Integrated speakers
  • Anti-glare glass with Tough anti-scratch 6H hardness coating
  • Integrated i5 Windows PC
  • Includes free wall mount - optional floor stand
  • Space for an optional card reader with NFC
  • Other sizes and colours available on request
  • Dimensions:
  • See below
More Information
This self service ordering system is designed for use in the fast food sector but can also be used in retail spaces. With a PCAP touch screen, this is the perfect solution for your business to allow staff to focus more on customer service, reduce queue times and improve the overall customer experience.

The integrated Epson printer provides a fast and reliable way to print receipts. The inkless thermal printer can print receipts up to 250mm/sec with options that can reduce paper usage up to 30%. Till roll is located in a separate compartment so that staff can quickly and easily replace till rolls. Also, includes an integrated QR code scanner that can be used to scan barcodes or QR codes with special offers or to place orders.

Built-in Intel core i5 Windows PC for high performance. If your application runs on Android or Linux these operating systems are also supported by the hardware. Option for an NFC card reader to be integrated to allow users to make easy, contactless payments via mobile devices.

Easy maintenance and cleaning with the lockable front access door and wipe clean surface. Safe and secure with anti-theft mounting to the wall and lockable door. Thermally toughened, anti-glare glass front with a special anti-scratch 6H hardness coating. Suitable for 24/7 use and customisable upon request in any size and colour you desire (white comes as standard). Additional option for an integrated camera or double-sided versions.

Display Area
Overall Size
Net Weight (Gross)
597.6 (h) x 336.2mm (w)
1075 (h) x 462 (w) x 192.4mm (d)
41kg (45kg)


Features of 27
Product Specs
Product Name Touch Screen Digital Self Service Kiosk
SKU SELF-DIS
Product Weight 41kg
Lockable Yes
Hardware Guarantee 3 Year Hardware Guarantee
Weight 41kg
Screen Ratio 16:9
Screen Resolution 1080x1920
Resolution 1920x1080 (1080p)
Screen Size 27"
Colour White
Height 1075mm
Width 462mm
Depth 192.4mm
Indoor / Outdoor Indoor
Contrast Ratio 5000:1
Wall Mountable Yes
Placement Wall Mounted
Brightness 350cd/m²
Power Consumption (W) 48W
Operating Temperature 0 °C to 50 °C
Operating Humidity 10% to 80%
Delivery / Availability 2-3 Working Days Delivery
Reviews

Customer Reviews

 (will not be published)
star star star star star
Artwork

Whether you're a novice or a professional when it comes to artwork, we're here to give you the guidance needed to make sure your end result is print perfect.

I don't have print ready artwork, can you design it for me?

If you have the elements, such as text, logos, and text, we can take these and create a print ready design layout for you at a small additional cost. We have a number of affordable set price packages available to suit any requirements. Many of our products have a design service as an additional extra for instant ordering. For products that don't please contact us to discuss your brief. Visit our in-house design service page to find out more.

I will be supplying print ready artwork.

Many of our print products have the option to upload your artwork on the product page. If that option is not available, you will receive an email shortly after placing your order with instructions on how to send your artwork files.

In order to avoid any delays in production, please follow our guidelines below to make sure your artwork is ready to go. If you have any questions, please don't hesitate to get in touch to talk to one of our team.

Resolution - 100dpi At Full Size

Generally, 100 dpi is a good standard for images with the document size set at full size of the large format printed product. For example, if you want to order a 40"×60" print, the image size should be 4000 pixels (40 x 100) by 6000 pixels (60 x 100) at 100 dpi.

100% scale at 100 dpi
50% scale at 200 dpi
25% scale at 400 dpi
10% scale at 1000 dpi

If any dimension of the product is greater than 5000mm, please produce the artwork to scale. For very large artwork such as hoarding walls, 10% scale can be utilised at 1000dpi for images, or use vectors as these will scale perfectly.

Bleed - 5mm All Around At The Final Print Size

If you are creating set size artwork for hardware then please use the product template. If you have ordered a custom size product please ensure you include 5mm of bleed on your design.

You only need to add print bleed to your artwork if the design extends to the edge of the page. If all of your text and images are in the centre of the design and are surrounded by a plain white background, you won’t need to worry about print bleed as the edges will blend seamlessly into your overall design. If any element of the design goes right up to the edge of the page, a 5mm bleed on all sides is necessary.

Instructional diagram for print design showing the process of adding a 5mm bleed to artwork for printing, with stages including initial layout with crop marks, designated trim line, and the final trimmed sign, emphasizing the necessity of bleed for designs extending to the page edge.

Colours - Please Supply All Colours As CMYK+

Computer screens use RGB, while printers use CMYK. You may ask why this matters? Most colours created in RGB can be closely matched in CMYK but some cannot. If colours are critical we always suggest ordering a printed proof.

Other things you can do to check your colours:

- Use a calibrated monitor (colours vary from monitor to monitor)
- Use a printed CMYK colour swatch to check your colours
- Don't check samples from a desktop printer
- Order a printed proof from us (this may cause an increase in lead time)

Fonts - Please Embed, Flatten, Or Convert To Curves

For large format print, we recommend that the minimum font site is 8pt (point size).

Our preferred file format for print-ready artwork is a PDF, please make sure you embed any fonts for perfect results. With other file formats please ensure fonts used in your design are converted to outlines and include all fonts and images used when you send your files to us.

Do You Need A Proof?

If you are providing print ready artwork, we do not provide a proof as standard, which enables us to get your print to you quicker. If you require a proof please get in touch with us to discuss. We do provide a free technical file check as standard, as outlined below.

We can provide a machine print proof for the extra cost of £25 plus delivery. This involves printing an A3 proof on the machine that will be used to produce your final print. This will give you an accurate representation of colour. If you are using our design service, we do send out a PDF proof, which is an accurate representation of content and positioning. It is not an exact indicator of the final colour due to the limitations of screens.

Quoted delivery dates for print are from approval of artwork, so please bear in mind that requesting a proof may delay the delivery date of your product.

Delivery

After you have placed your order a provisional despatch and delivery date will be sent to you via email.

Our standard delivery time for printed products is 2-5 working days after artwork has been approved for print. If you have a specific deadline, please contact us to ensure we can meet this. Please check that your artwork meets the guidelines above to prevent any delays in approval.

Free Artwork Check

Before we go to print, we will carry out a free technical check on your artwork. If there are any issues, we will contact you to let you know what needs to be changed.

What's Included
What's Not Included
  • File format
  • File size
  • Resolution
  • Fonts
  • Colours
  • Spelling and Grammar Mistakes
  • Positioning

Colour Matching

Our printers and media are of the highest standard and are carefully calibrated to produce vibrant, full colour prints. The process involves CMYK printing and this means it is not always possible to match Pantone colours, but they will be converted to the nearest CMYK equivalent.

If exact colour matching is critical, please send us a physical copy of other printed material, such as a letterhead or brochure, and we will check your file prior to printing. If we cannot achieve a reasonable match we will call you to discuss.

Please send any physical examples to: Discount Displays, 31-35 Wortley Road, Croydon, Surrey, CRO 3EB.

Need more help? Check out our full artwork preparation guide below:


FAQs
No questions have been asked about this product yet.

Check out our FAQ page for general information about delivery, artwork, returns and more.

If you want to ask a question about this product please contact us via the Live Chat button on the side of the page, call us on 020 8664 5660 or e-mail us at sales@discountdisplays.co.uk.

Customers also looked at

Price from £690.00 £575.00
  • Mounted Touch screen display
  • Dual OS - Includes Windows & Android
  • Use in landscape or portrait
  • Integrated speakers & Wi-Fi
  • 64gb of internal storage
  • 5 sizes from 22" to 55"

Price from £2,398.80 £1,999.00

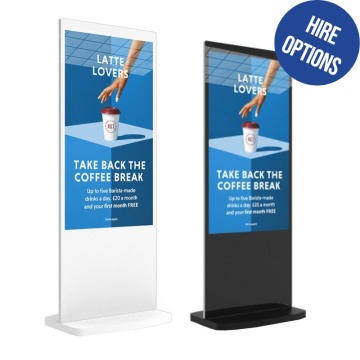

  • Slim freestanding digital sign
  • White or black colour options
  • 3 screen sizes to choose from
  • Built in Android media player
  • Network Upgradable
  • Lifetime technical support
Best Seller
1 review

Price from £624.00 £520.00

  • Free 1 year software license
  • Multi screen synchronisation
  • Plug and Play or network
  • Narrow bezel
  • Easy use template library
Best Seller

Price from £2,916.00 £2,430.00

  • One of the finest touch displays on the market
  • 178° ultra wide viewing angle
  • Integrated android media player
  • Networked solution - update remotely
  • Simple to use but also advanced and scalable

Price from £274.80 £229.00

  • Android Advertising Display Tablet
  • Optional network & touchscreen upgrade
  • Use in landscape & portrait
  • HD screen with built in speakers
  • Sleek, modern design
  • Power & network from a single cable

Price from £2,976.00 £2,480.00

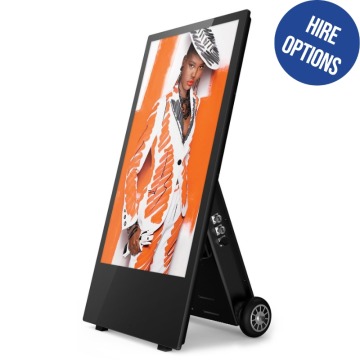

  • Battery powered outdoor A-board
